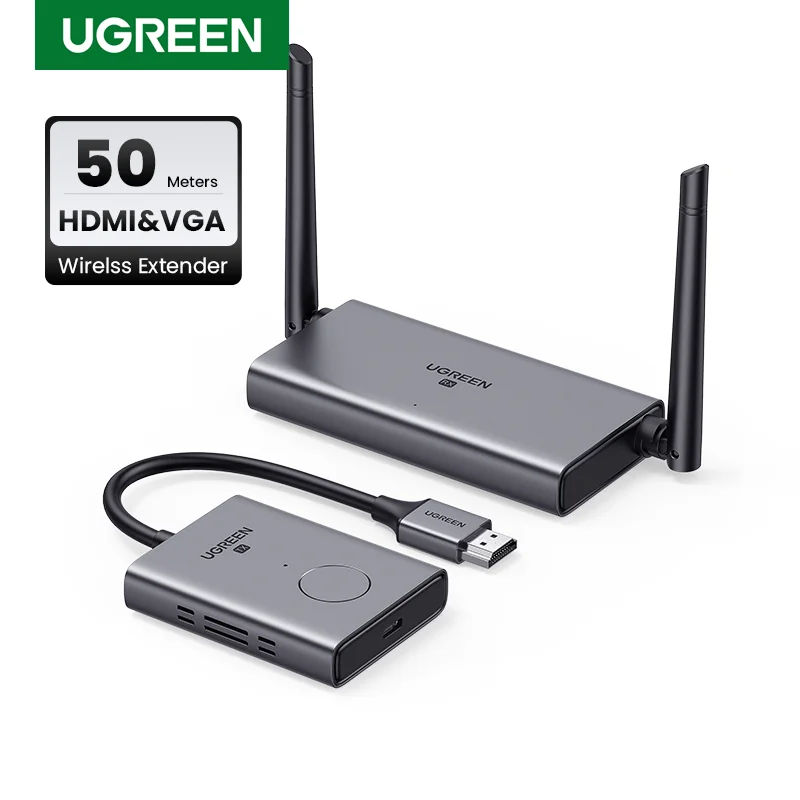

【NEW-IN】UGREEN Wireless HDMI Extender Video Transmitter & Receiver Kit 5G 50M Transmits Display Dongle for TV PC PS5/4 Monitor

$349.14

SKU: 3256804201914422 Category: Electronics

Hign-concerned Chemical: None
Antenna Type: External
Decode Ability: 1080P (Full-HD)
Connectors: HDMI-compatible
Operation System: Android
Model Number: CM506/50633A
Recording: No
Brand Name: UGREEN
Origin: Mainland China
Item Type: TV stick
Certification: CE,FCC,RoHS
Remote Control: Not Included
Product Name: Wireless HDMI Extender
Function 1: Wireless Video Transmitter
Function 2: Wireless Video Receiver
Function 3: HDMI & VGA
Two Model: Mirror & Extend Mode
Feature 1: 1080P Full HD
Output Devices: Laptop/PC/PS5/Switch…
Input Devices: Projector/Monitor/TV…
Transmission distance: 50 Meters

UGREEN

◎ Brand Newest Release

◀◀ Wireless HDMI Extender▶▶

50M Transmit

———————————————————————————————————————————————————

HDMI Wireless Extender

Name: 【NEW-IN】UGREEN Wireless HDMI Extender Video Transmitter &amp; Receiver Kit 5G 50M Transmits Display Dongle for TV PC PS5/4 Monitor
SKU: 3256804201914422
Availability: InStock

50m HDMI-Transmit✔

HDMI & VGA-Receive✔

5GHz Wireless✔

Connect Your Computer to Display

HDMI & VGA ports ensure a widely compatibility

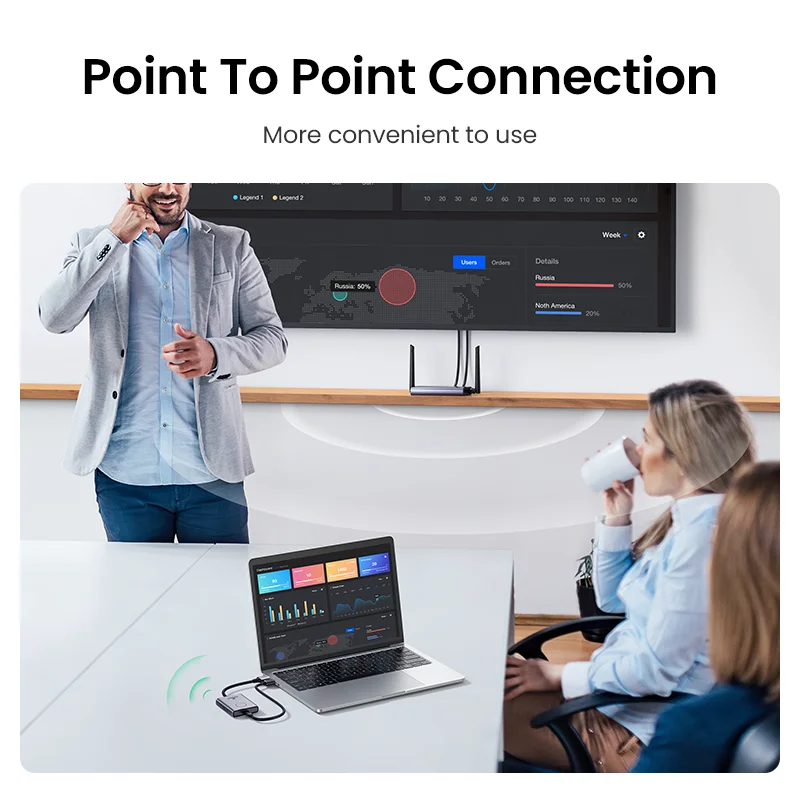

Point to Point Connection

More convenient to use

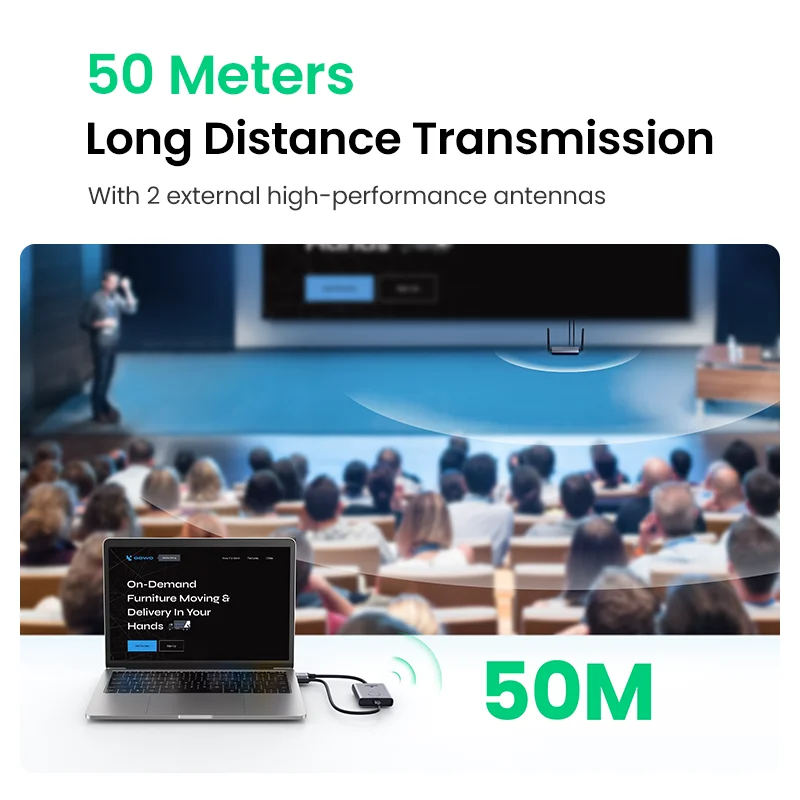

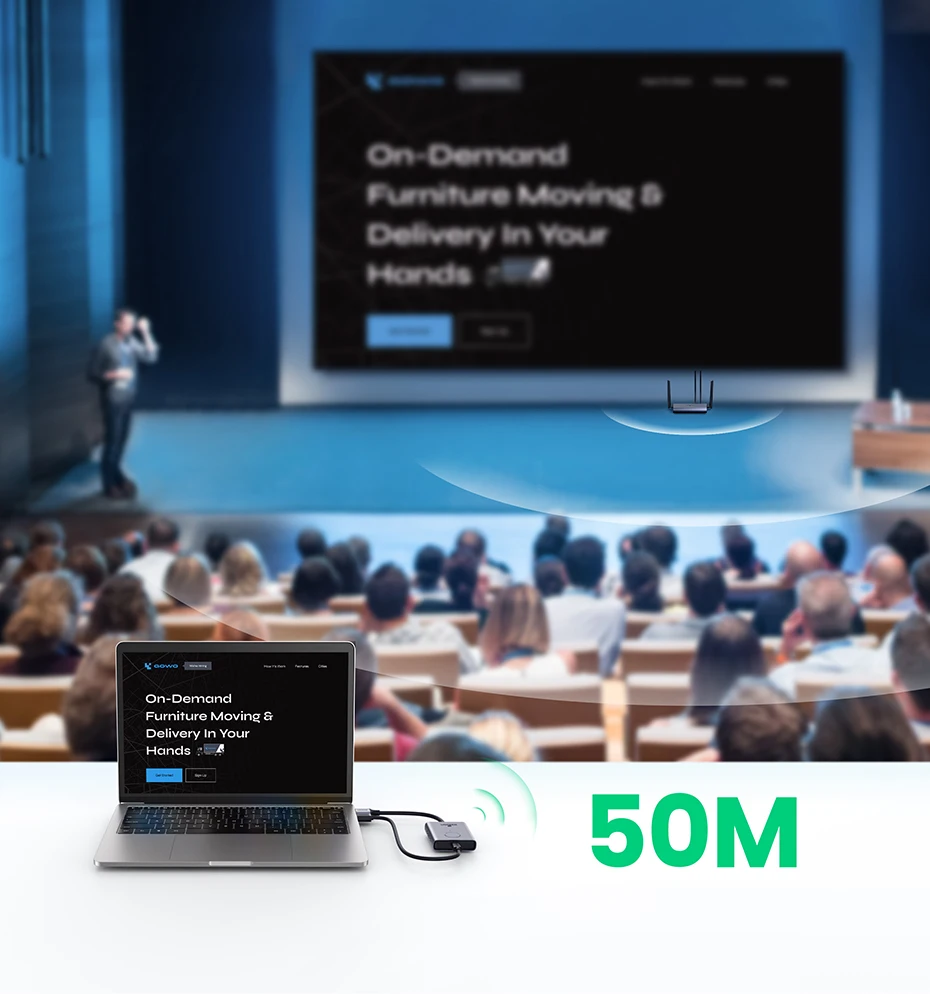

50 Meters

Long Distance Transmission

With 2 external high- performance antennas

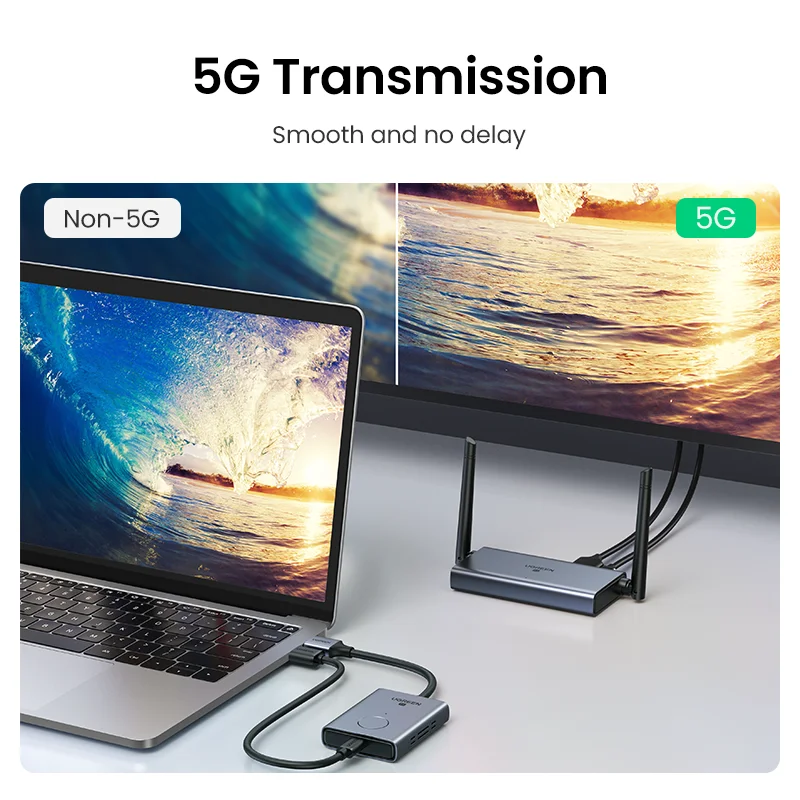

5GHz Wireless Transmission

Ensure smooth and lag-free screen transfer

Multi-interface Design

✔HDMI & VGA dual video interface

✔3.5mm audio interface, support external audio devices

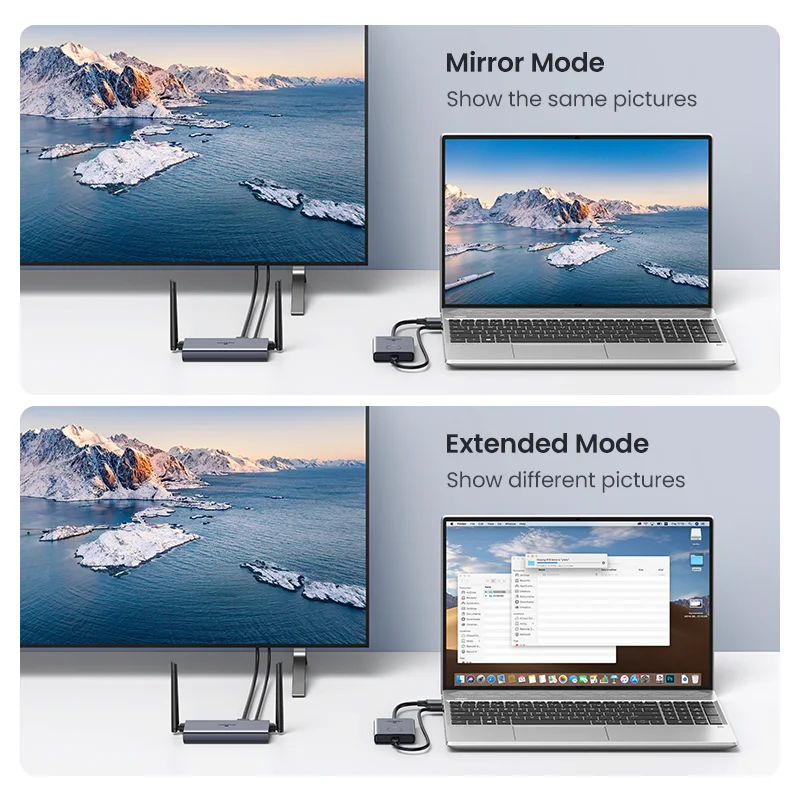

2 Display Modes Available

✔Mirror Mode: Show the same pictures on a big screen

✔Extended Mode: Show different pictures, working & entertainment at the same time

Plug & Play

✔Driver-free✔No network Needed✔No software Needed

Wide Compatibility

Powerful Chipset

Using high-performance digital chip

One-Click Disconnect | Connect

Support automatic reconnection

USB-C Power Supply Port

Making transmission more stable

*Note: Please provide power supply when you use it. Otherwise, unstable transmission may occur.

All in One

Multiple interfaces meet your needs

1080P HD Quality

Offer a true-to-life picture quality

More Details

✔Hollow design, fast heat dissipation

✔Silicone base, stable and non-slip

✔Alloy material, strong and durable

Connection Steps

Product Specification

Brand Name：

UGREEN

Product Name：

Wireless Extender

Model No.：	CM506
Transfer Method：	5GHz Extender
HDMI Resolution:	1080P@60Hz, backward compatible with 720P@60Hz
VGA Resolution：	1080P@60Hz, backward compatible with 720P@60Hz
Transmission：	50 Meter Wireless
Power Supply Port：	USB-C
Material：	Aluminum Alloy + ABS
Package：	UGREEN Retail Box

Package List

People Ask

Q1: Does this product support HDCP?

A1: Yes, it support HDCP1.4.

Q2: The transmission protocol of this product is?

A2: dopt wireless 5GHz wireless transmission.

Q3: Is the output image of the extender point-to-point or compressed?

A3: In the middle of product transmission is codec, RX output is compressed image output.

Q4: Is there any delay after the video is transmitted through the wireless extender?

A4: About 140ms.

Q5: Does the product support display EDID reading (transparent transmission)?

A5: Use built-in fixed EDID.

Q6: The product cannot be paired successfully?

A6: After the product TX and RX terminals are powered on again, you can press and hold the reset button, wait for the indicator light to go off and then release, the product will enter automatic pairing (the product will have no signal output on the RX terminal and there will be a factory reset instruction on the screen).

Q7: How to check the product if the video doesn’t appear?

A7: Follow the below steps please.

1) Check whether the product is powered on. Try to use standard power as the power source. If the power supply is insufficient, it will fail to connect. When the power is turned on, the power indicator of the product is always white.

2) After the product is received, check the status of the TX and RX to see if the pairing is successful. When there is no pairing, the TX end indicator will flash;

3) Reduce the output resolution and refresh rate of the device, and investigate the signal attenuation caused by poor wire material;

4) When there is no signal output from the VGA port, you can connect the display device to the HDMI output port on the RX to check whether the signal is displayed normally;

5) The distance between TX and RX can be shortened (open and unobstructed) for testing, whether there is strong electromagnetic interference in the space.

6) If possible, it is recommended to replace other equipment and try it.
